Stirring Device

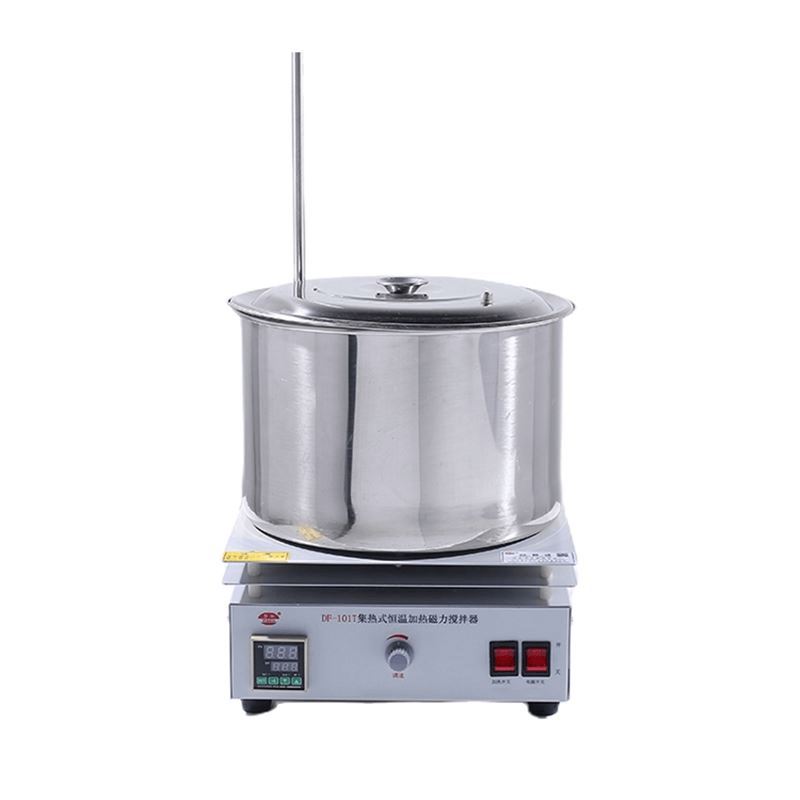

Stirring Device Working With Glass Reactor System

Stirring Device

A heating magnetic stirrer is a widely used sample preparation device in laboratories. It mainly consists of a motor, permanent magnets, and a control circuit. By utilizing magnetic field and vortex principles, the instrument generates a rotating magnetic field near the magnetic base during operation. This magnetic field drives the stir bar to rotate in a circular motion, creating a vortex inside the container and achieving effective mixing.

The base of the heating magnetic stirrer also features a heating function, allowing the solution to be heated to the desired temperature while being continuously stirred.

Detailed Description

Digital Display Heating Magnetic Stirrer

This intelligent digital heating magnetic stirrer comes in four sizes: 140×140, 180×180, 230×230 and 280×280. It adopts a fuzzy PID control algorithm for temperature regulation, equipped with dual‑screen digital display and auto‑tuning function. It provides high measurement accuracy and low temperature overshoot. Other capabilities include single‑key touch operation, internal and external thermocouple temperature measurement, silicon‑controlled output, 160‑240 V wide‑voltage power supply, and thermocouple break protection.

Product Features

Exclusive square or round enamel‑coated aluminum alloy heating panel, with nice appearance, corrosion resistance and anti‑deformation under heating conditions.
Patented heating design, maximum surface temperature reaches up to 380 ℃.
Implements fuzzy PID temperature control algorithm, dual‑screen digital display and auto‑tuning function. High measuring accuracy and minor temperature overshoot. Supports single‑key touch operation, internal & external thermocouple temperature detection, silicon‑controlled output, 160‑240 V wide‑voltage input and thermocouple break protection.
Suitable for heating and stirring standard or non‑standard reaction flasks from 50 ml to 20000 ml, as well as non‑magnetic metal and other non‑metal vessels.
Brushless DC variable‑speed motor delivers stable performance, low noise, long service life and zero electric spark.
Stamped metal housing features high‑temperature resistance, corrosion resistance and good insulation property.
Built‑in over‑temperature protection.
30° inclined control panel for convenient viewing in both sitting and standing postures.
Stepless speed regulation: stable running at low speed and powerful output at high speed.

Item	140×140 mm	180×180 mm	230×230 mm	280×280 mm
Power Supply	AC 220 V, 50 Hz	AC 220 V, 50 Hz	AC 220 V, 50 Hz	AC 220 V, 50 Hz
Speed Range	50‑1800 rpm, stepless speed regulation, digital display	50‑1800 rpm, stepless speed regulation, digital display	50‑1800 rpm, stepless speed regulation, digital display	50‑1800 rpm, stepless speed regulation, digital display
Motor Power	40 W, DC 14‑24 V	40 W, DC 14‑24 V	40 W, DC 14‑24 V	40 W, DC 14‑24 V
Heating Power	260 W	350 W	600 W	750 W
Max. Surface Temperature	380 ℃	380 ℃	380 ℃	380 ℃
Temperature Control Mode	Intelligent digital display, silicon‑controlled regulation	Intelligent digital display, silicon‑controlled regulation	Intelligent digital display, silicon‑controlled regulation	Intelligent digital display, silicon‑controlled regulation
Temperature Control Accuracy	±1 ℃	±1 ℃	±1 ℃	±1 ℃
Heating Wire	Cr20Ni80	Cr20Ni80	Cr20Ni80	Cr20Ni80
Heating Area	140×140 mm	180×180 mm	230×230 mm	280×280 mm
Panel Material	TU2 oxygen‑free copper / black crystal ceramic panel	TU2 oxygen‑free copper / black crystal ceramic panel	TU2 oxygen‑free copper / black crystal ceramic panel	TU2 oxygen‑free copper / black crystal ceramic panel
Stirring Capacity	50‑500 ml beaker	50‑2000 ml beaker	50‑5000 ml beaker	50‑10000 ml beaker
Working Duration	Continuous operation	Continuous operation	Continuous operation	Continuous operation
Overall Dimension	265×155×120 mm	325×215×120 mm	430×270×150 mm	500×330×150 mm
Packing Dimension	315×205×170 mm	375×265×170 mm	480×320×200 mm	550×380×200 mm
Net Weight	2200±200 g	4000±200 g	7000±200 g	9500±200 g

Frequently Asked Questions (FAQ)

1. What is a Heating Magnetic Stirrer?

A heating magnetic stirrer is a laboratory device used for mixing and heating liquids at the same time. It uses a rotating magnetic field to drive a magnetic stir bar inside the container, creating continuous and uniform mixing.

2. How does a Heating Magnetic Stirrer work?

The instrument generates a rotating magnetic field through the magnetic drive system. This magnetic field drives the stir bar inside the container to rotate, creating a vortex and mixing the liquid. At the same time, the heating plate can heat the sample to the required temperature.

Q3: What types of liquids can be mixed with a magnetic stirrer?

Magnetic stirrers can be used for water-based solutions, chemical reagents, solvents, buffer solutions, biological samples, and other low- to medium-viscosity liquids.

Q4: What containers are suitable for this magnetic stirrer?

Use non‑magnetic vessels: glass beakers, glass flasks, non‑magnetic metal and non‑metal containers. Iron‑based magnetic containers cannot be used, which will block magnetic transmission.

Q5: What is the maximum stirring capacity?

The maximum stirring capacity depends on the model. Different magnetic stirrers are available for small laboratory samples as well as larger-volume applications. Please select the appropriate model according to the liquid volume and viscosity.
