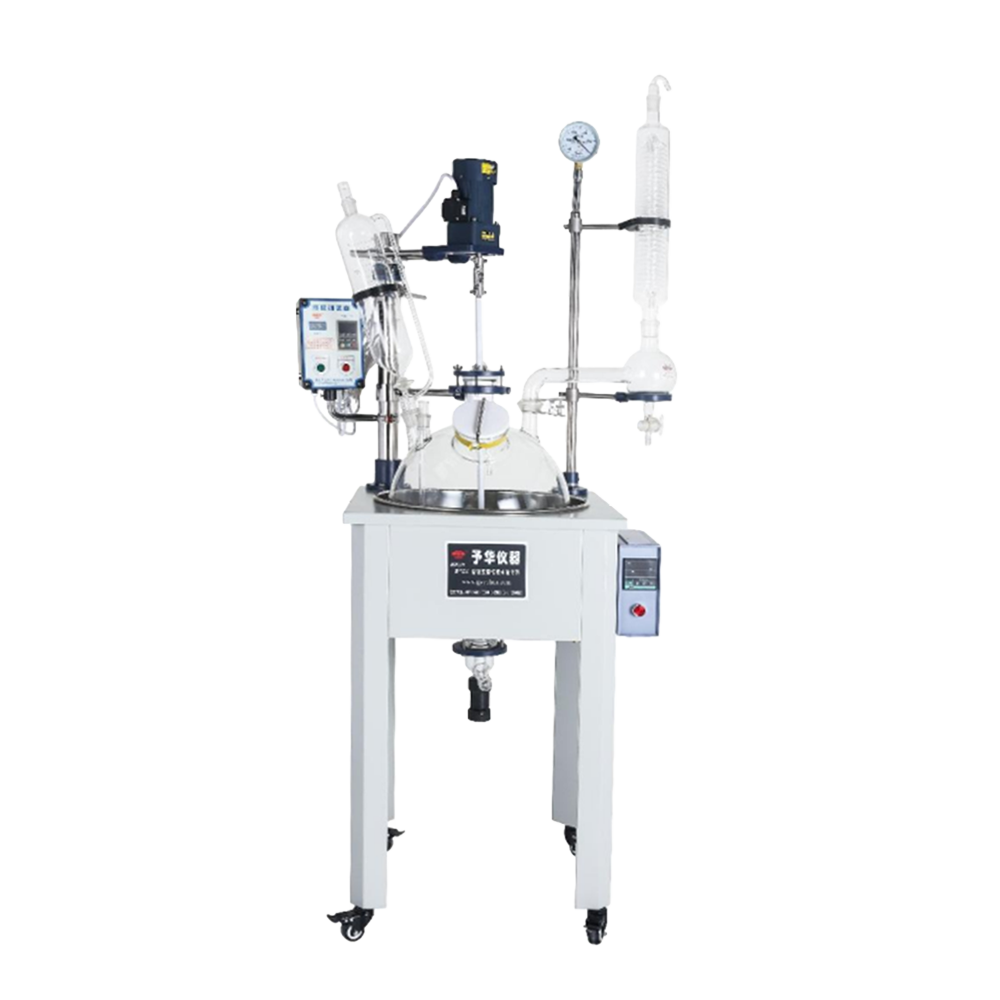

Single-Layer Glass Reactor

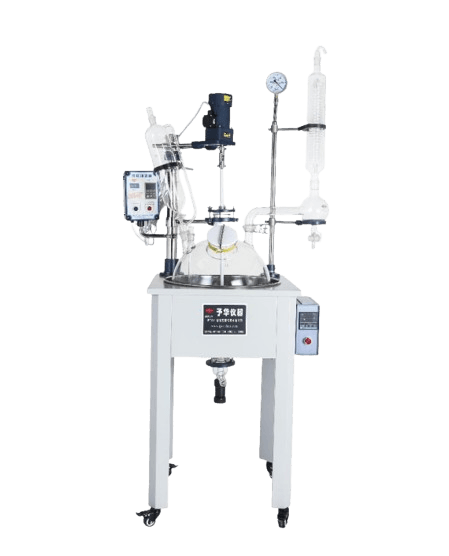

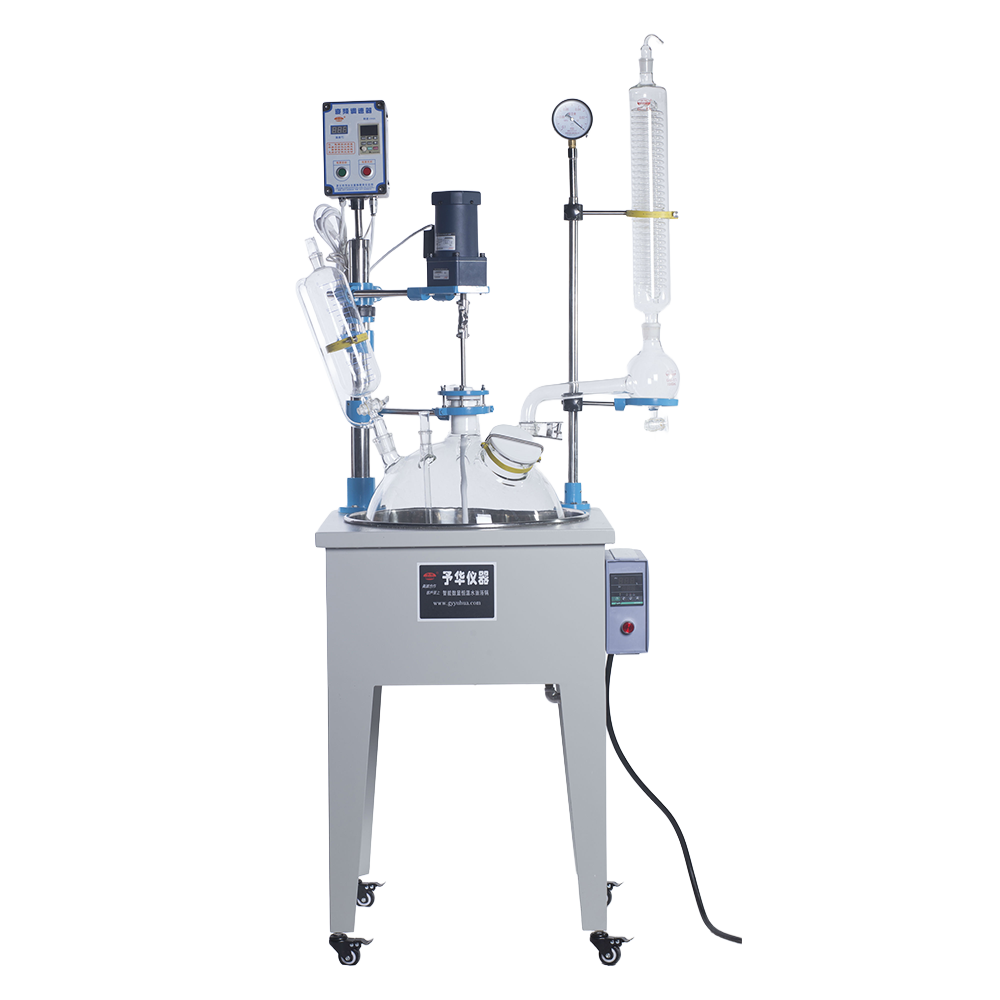

Powerful Stirring System For Uniform Mixing

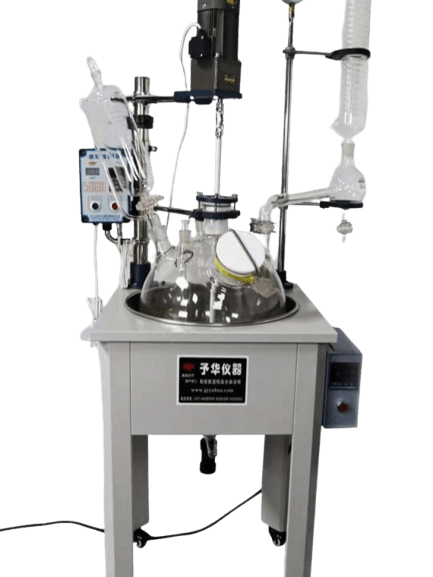

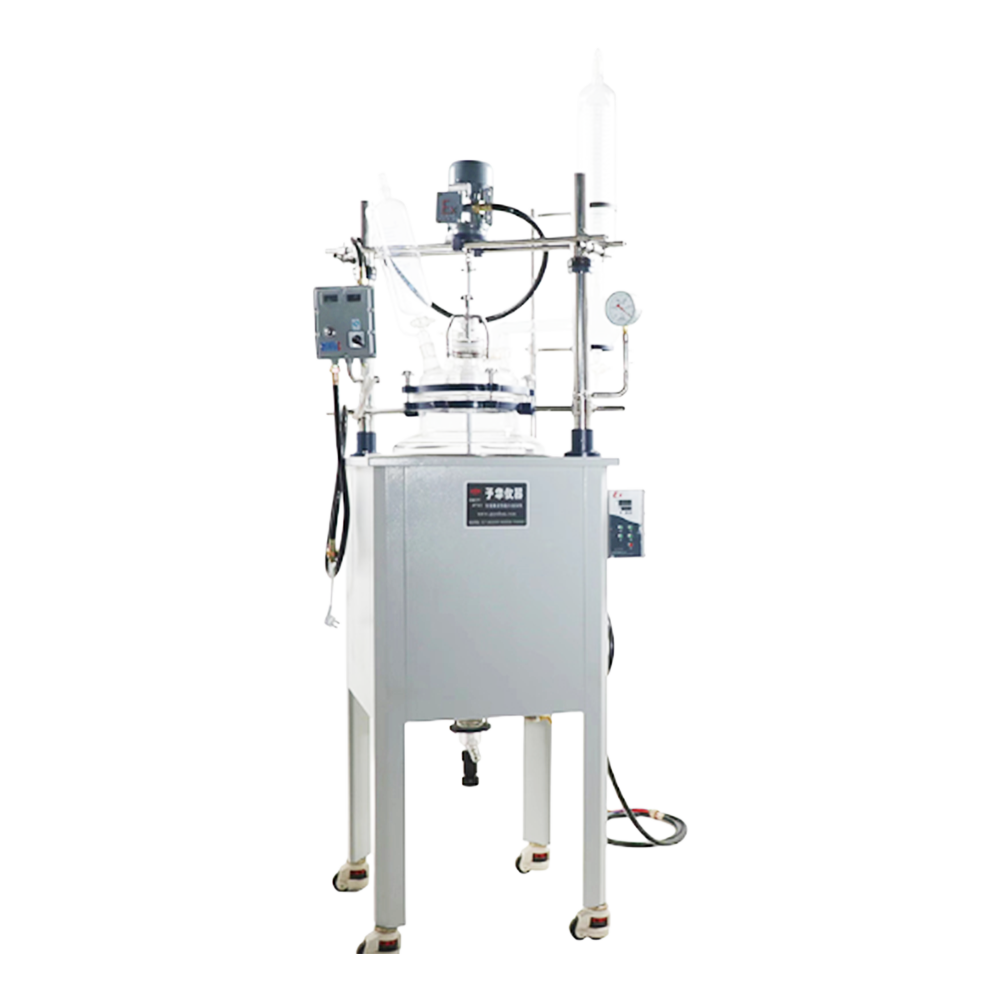

Single Layer Glass Reactor With Heating, Stirring And Condensation System

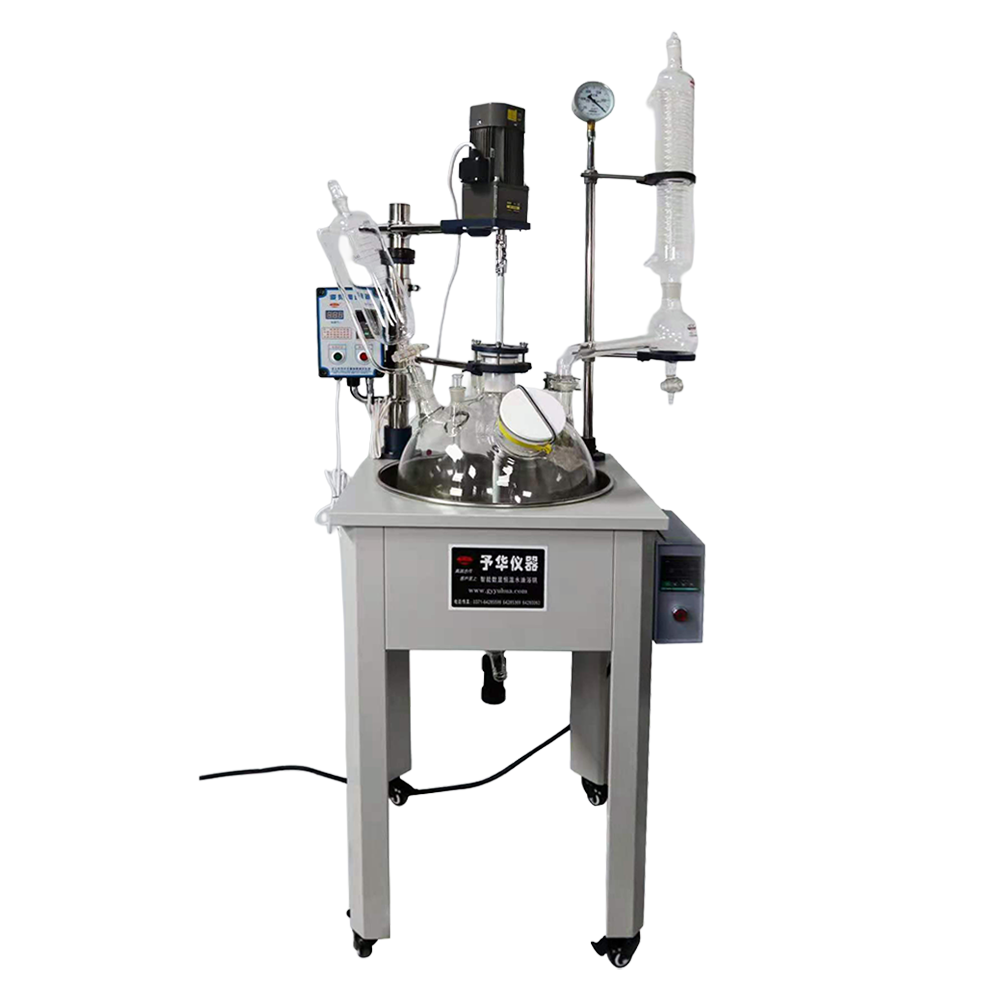

Single-Layer Glass Reactor

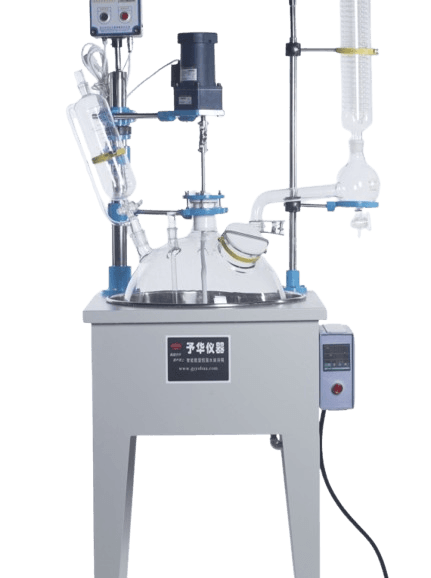

The single layer glass reactor is equipped with a stirring system, reflux condensation system, dropping system, and heating system. While the materials are being stirred, the heating bath provides heat to the materials inside the reactor. Under vacuum conditions, the evaporation efficiency can be improved (a vacuum pump or vacuum system is required). The solvent vapor is cooled into liquid when passing through the glass condenser coil (a cooling system is required), and the condensed liquid can either return to the reactor for reflux or be collected through the valve at the bottom of the reflux elbow.

Detailed Description

Working Principle

The single layer glass reactor is equipped with a stirring system, reflux condensation system, dropping system, and heating system. While the materials are being stirred, the heating bath heats the materials inside the reactor. Under vacuum conditions, the evaporation efficiency can be improved (a vacuum system is required). The solvent vapor is cooled into liquid when passing through the glass condenser coil (a cooling circulation system is required). The condensed liquid can either flow back into the reactor for reflux or be recovered through the valve at the bottom of the reflux elbow.

After the reaction is completed, the material can be discharged through the side outlet at the bottom of the reactor. This series of products needs to be used together with auxiliary equipment such as a vacuum system and cooling circulation system to form a complete reactor system.

Product Features

1. The equipment adopts a unique structural design. The whole machine is made of a cold-rolled steel plate with electrostatic powder coating and a stainless steel frame structure. It features a compact, strong, deformation-resistant design and is easy to move.

2. All parts in contact with the materials are made of high borosilicate glass (expansion coefficient 3.3) and PTFE (polytetrafluoroethylene) materials. The materials have stable performance, are resistant to chemical reactions with processing materials, and provide safe and convenient operation.

3. Equipped with an explosion-proof variable speed control box, which displays the stirring speed and material temperature inside the reactor. The explosion-proof stirring motor and explosion-proof heating bath allow precise temperature setting and control. Explosion-proof grade: EX d IIB T4.

4. The stirring system adopts ceramic bearings and mechanical seals to prevent wear particles from the stirring shaft. It features high-temperature resistance, excellent wear resistance, and reliable sealing performance.

5. Equipped with a PT100 temperature sensor and a glass thermometer protection tube for accurate temperature monitoring.

6. The vacuum pressure gauge displays the real-time vacuum level with a pointer indicator.

7. The reactor uses a crescent-shaped stirring paddle made of 304 stainless steel + PTFE. The stirring shaft is made of 304 stainless steel and covered with a PTFE tube, providing high strength and excellent corrosion resistance.

8. The discharge valve is made of glass + PTFE, featuring a side discharge design with no liquid residue, allowing fast and convenient solvent recovery.

9. The constant-temperature heating bath is equipped with a built-in heating coil. The heating bath has an independent temperature control system, providing high temperature control accuracy.

10. The bottom of the heating bath is equipped with a drain outlet, making liquid replacement and maintenance convenient.

11. The bottom of the machine is equipped with universal casters with brakes, allowing the entire unit to be moved easily and providing convenient operation.

Product Specifications

Item	Specification
Model	YDF-200LEX
Effective Reactor Volume (L)	200L
Reactor Body Specification	Cylindrical Type
Voltage	Stirring: 220V 50Hz; Heating: 380V 50Hz
Total Power	15.5 kW
Glass Components Material	High Borosilicate Glass 3.3
Reactor Temperature Range	-80℃ to +250℃
Temperature Measurement Accuracy	±1℃
Constant Pressure Dropping Funnel Volume	3L
Constant Pressure Dropping Funnel Specification	Upper port: 29# ground glass joint; Lower port: 40# ground glass joint
Condenser Specification	Φ160 × 850H (mm), lower Φ40mm flange port
Condenser Circulation Connection Size	Barb outer diameter: 12mm
Condenser Heat Exchange Area	Approx. 1㎡
Allowable Pressure Inside Reactor	-0.1 to 0.0 MPa
Explosion-Proof Heating Bath	—
Heating Power	15 kW
Temperature Control Range	Room Temperature – 180℃
Temperature Control Accuracy	±1℃
Explosion-Proof Stirring Motor	—
Rated Power	550W
Speed Adjustment Method	Variable Frequency Speed Control
Speed Range	0~600 rpm/min
Reactor Lid Openings	Six ports (340mm)
Stirring Port	60# flange port
Constant Pressure Dropping Funnel Port	40# ground glass joint
Temperature Sensor Port	29# ground glass joint
Gas Exhaust / Liquid Inlet Port	34# ground glass joint
Solid Feeding Port	95# flange port
Condenser Connection Port	50# spherical ground glass joint
Main Frame Material	SU304 Stainless Steel + Cold Rolled Steel Plate with Electrostatic Powder Coating
Stirring Paddle	Φ25 × 1400H (mm), Blade Width: 300mm
Temperature Sensor	PT100 temperature sensor, glass thermometer protection tube
Vent Valve	34# glass + PTFE valve, vent port: 12mm
Vacuum Port Size	Barb outer diameter: 12mm
Discharge Valve	Zero-residual-liquid discharge valve, outlet outer diameter: 33mm
Discharge Valve Opening	100# flange port
Operating Ambient Temperature	5-35℃
Machine Dimensions	850L × 700W × 2150H (mm)

Frequently Asked Questions (FAQ)

1. What is a single layer glass reactor used for?

A single layer glass reactor is widely used for chemical reactions, mixing, heating, evaporation, concentration, crystallization, and solvent recovery processes. It is commonly applied in laboratories, pharmaceutical research, chemical industries, universities, and R&D facilities.

2. What materials can be processed in a single layer glass reactor?

The single layer glass reactor can handle various materials, including organic solvents, chemical solutions, pharmaceutical intermediates, plant extracts, and other liquid or semi-liquid materials. The reactor body is made of high borosilicate glass 3.3, which provides excellent chemical resistance and temperature stability.

3. What is the maximum working temperature of the glass reactor?

The standard working temperature range of our single layer glass reactor is -80℃ to +250℃. The actual operating temperature depends on the reactor model, heating system, and process requirements.

4. Can the single layer glass reactor work under vacuum conditions?

Yes. The single layer glass reactor can operate under vacuum conditions when connected with a vacuum pump or vacuum system. Vacuum operation can reduce the boiling point of solvents and improve evaporation efficiency.

5. Does the reactor include a heating system?

Yes. The reactor is equipped with a constant temperature heating bath system, which provides stable and accurate heating. The heating temperature can be precisely controlled according to different process requirements.
